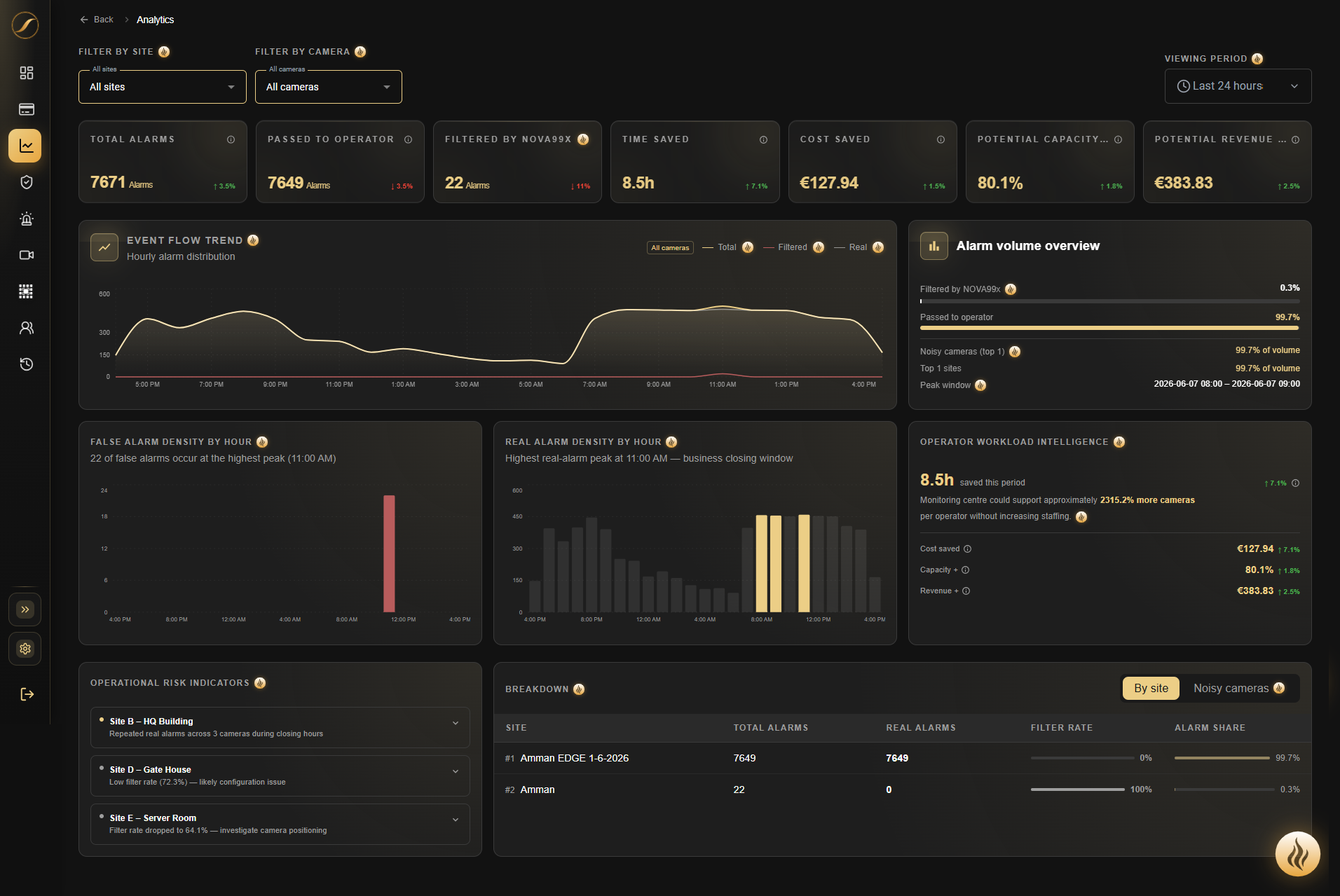

Analytics Dashboard Overview

Analytics is GC Surge’s operational intelligence layer. It transforms raw alarm volume data into structured trend information that managers use to understand what is happening across their sites, identify problems before they become critical, and make evidence-based decisions about staffing, configuration, and operations. To open Analytics, click Analytics in the left sidebar. Covers: What Analytics Does, Why It Matters, What Analytics Provides.

What Analytics Does

Make Analytics part of your regular operations governance — not just something you open during incidents.

Why It Matters

Without aggregated dashboards, security managers cannot identify which sites or cameras are generating disproportionate alarm volumes, track whether response quality is improving over time, or build the evidence base to justify staffing or technology decisions. Analytics provides the trend context that point-in-time dashboards cannot.

What Analytics Provides

Everything shown in Analytics is derived automatically from alarm events processed by the platform. No additional configuration is required to start seeing data.

Event Flow Trend — the alarm trend over time as three series (Total, Filtered, Real), segmented by site and camera.
Alarm density by hour — two panels (False and Real) showing when alarms peak during the day.
Alarm Volume Overview — the filter ratio, noisiest cameras, top sites, and peak alarm window at a glance.
Operator Workload Intelligence — operator capacity and the value delivered by filtering, plus the same seven summary KPI cards as the Home dashboard, scoped to the current filters and period.
Breakdown — per-site and per-camera alarm counts (By site / Noisy cameras tabs).
Operational Risk Indicators — flags sites showing risk patterns so you can investigate.

Each panel is explained in detail under How to Read the Analytics Panels below.

Filters

The Analytics screen includes three filter controls at the top of the page.

Filter by Site — narrows all metrics and charts to a single site. Select All sites to view platform-wide data. There's no side-by-side compare view yet, so to compare two sites, load one and export or screenshot, then switch — or use the Breakdown panels (By site, Noisy cameras), which already show per-site rows in one view. The underlying data is also available per site via API.
Filter by Camera — narrows results to a specific camera within the selected site. You can select several cameras; the dashboard then shows the union of their events. The False Alarm Density by Hour and Real Alarm Density by Hour charts support per-camera colouring, so two-camera comparisons surface time-of-day differences clearly; for per-camera alarm-type breakdowns, use the Breakdown panel.
Viewing Period — sets the time window: pick a preset range (up to Last month) or a custom From/To range. Shorter ranges suit daily operations; the weekly rollup is the standard for ROI and operator-performance reviews; longer ranges are best for trends and capacity planning; and a custom range for incident retrospectives. Very large windows take a few seconds to render.

When using filtered data for reporting, always note the filter state in your report. A screenshot showing platform-wide data presented as site-specific data is misleading.

KPI Cards

Seven KPI cards run across the top of the Analytics screen. All are scoped to the current Filter by Site, Filter by Camera, and Viewing Period selections — switching from All sites to a single site re-scopes every card to that site only.

TOTAL ALARMS — total alarm events received across all sites and cameras in the selected period.
PASSED TO OPERATOR — alarms that passed through NOVA99x and required human handling.
FILTERED BY NOVA99x — alarms removed by AI before reaching any operator. The filter rate percentage (Filtered ÷ Total × 100) is shown alongside the count.
TIME SAVED — cumulative operator hours saved through AI filtering in the period, calculated from average processing time × alarms filtered.
COST SAVED — the monetary value of the time saved, based on your operator cost settings.
POTENTIAL CAPACITY — an estimate of the additional cameras your current team could handle at today’s alarm rate and filter rate, without adding headcount.
POTENTIAL REVENUE — the estimated revenue potential from that additional camera capacity, based on your configured revenue-per-camera value.

How to Read the Analytics Panels

Filtered by NOVA99x (filter rate)

The percentage of ingested alarms NOVA99x filtered in the period — filtered alarms ÷ total ingested alarms × 100. So 85% means 85 of every 100 ingested alarms were classified non-actionable and never reached an operator. This is a volume figure, not an accuracy figure: how often the AI was right comes from closure-tag feedback over time, not from this number. A very high rate isn't automatically good — if NOVA99x filters 99% of events on a perimeter camera that should report real intrusions, it may be over-filtering, so cross-check against the closure-tag distribution.

Event Flow Trend

A time-series of Total, Filtered and Real alarm counts. The three are plotted as independent lines rather than stacked: although Total = Filtered + Real, separate lines make it clear when the gap between Total and Real widens (more filtering) versus when they move in lockstep (no filtering effect). Use the All cameras / Total / Filtered / Real toggles to hide series you don't need — the chart rescales automatically. Three patterns are worth knowing:

Total spiking while Real stays flat — NOVA99x is doing its job; investigate the noise spike on the noisy-cameras panel.
Total flat but Real climbing — operations or filtering effectiveness changed; check for a new site going live or a NOVA99x reconfiguration.
A diurnal pattern (peaks at dawn/dusk) — typically lighting-change false alarms, which the hour-density charts will confirm.

Alarm Volume Overview — Noisy cameras and Peak window

Noisy cameras is a count of cameras whose false-alarm rate (alarms filtered or marked false by operators) exceeds a configurable percentile threshold for your account — typically the 90th percentile by alarm volume. The Breakdown panel below names them by site and camera with their specific false-alarm percentage, so you can prioritise masking and tuning.

Peak window is the recurring time-of-day when your team is under the most alarm pressure — useful for shift planning. If peak is consistently 17:00–18:00, that's where extra operator coverage or stricter NOVA99x thresholds pay off most. It shifts day to day, so read it over Last 7 days and Last 30 days to find the recurring pattern rather than reacting to a single day. For global deployments, peak by local time matters more than peak by UTC.

False Alarm Density by Hour

Shows how false alarms distribute across the hours of the day, which usually reveals their cause: dawn/dusk peaks point to lighting transitions (tune exposure or apply time-of-day masks); mid-afternoon peaks to tree shadows tracking the sun or HVAC steam venting on a cycle (mask the area or reschedule the cycle); late-night perimeter peaks to wildlife or vehicle lights from an adjacent road (targeted masking). It's most useful per camera, so combine it with the camera filter during tuning sessions.

Real Alarm Density by Hour

Shows when real alarms actually occur — the true threat window for your portfolio. Real alarms typically cluster outside business hours (nights, weekends) for commercial sites and during the day for residential. Compare the curve to your operator schedule: under-coverage at peak real-alarm hours means delayed events, weaker dispatch quality, and missed SLAs. Use it in scheduling reviews and to justify after-hours operator capacity.

Operator Workload Intelligence

Brings three workload measures together: average alarms handled per operator per hour versus your target throughput; the spread across operators (balanced, or is one operator carrying the team?); and projected capacity headroom. The headroom line — “could support X more cameras at current load” — divides free operator minutes by what one more camera would cost in operator time. It assumes today's alarm rate per camera, NOVA99x filter rate and average processing time, so adding NOVA99x or retraining operators shifts it. Treat it as growth guidance, not a hiring contract.

Operational Risk Indicators

Surfaces sites that need attention, each row naming the site and the specific concern — for example “repeated real alarms across several cameras during closing hours”, “low filter rate — likely a configuration issue”, or “filter rate dropped — investigate camera positioning”. The signals fall into three areas: real-alarm patterns (clusters in a recurring window), filtering health (a low or dropping NOVA99x filter rate), and infrastructure (inactive cameras or sites in Error). The intent is a single panel a supervisor can scan once a day to know what needs attention.

Breakdown — By site vs Noisy cameras

Two views of the same alarm data at different grains. By site rolls every alarm up by site — a quick “where is the volume coming from?” view, good for portfolio reporting and customer conversations. Noisy cameras drills into individual cameras and ranks them by false-alarm volume — the day-to-day tuning queue. To act on a noisy camera, click into it to see its event timeline and Heatmap overlay (this usually identifies the physical source — a tree, a road, sun glare), open the camera in Configuration, draw a Mask over that source, and save. Watch the camera's row over the next 24–48 hours; the false-alarm count should drop noticeably. If masking doesn't help, camera angle or detection sensitivity is the next thing to tune.

Review Cadence

Daily — Has alarm volume spiked significantly compared to the same time yesterday or last week? Are any previously quiet sites suddenly generating high volume?
Weekly — Compare this week vs. last week. What changed? Did any operational events (new site activation, NOVA99x change, seasonal factors) correspond with volume changes?
Monthly — strategic review. Is overall volume trending up because you are growing, or because alarm quality is degrading? Does staffing allocation match site activity patterns?

Best Practices

Review Analytics weekly, not only during incidents. Trend problems are easier to fix when caught early.
When a site shows a spike in alarm volume, cross-reference with Video Search to determine whether the increase represents real events or camera noise.
Use the noisy camera list as an input to your NOVA99x configuration. Cameras generating high false-alarm volumes are the best candidates for AI filtering.

Use Analytics for strategic review, not shift monitoring. The Alarm Center shows what is happening right now during a shift. Analytics is for weekly and monthly operational reviews — check it after enabling NOVA99x on new sites, adding operators, or onboarding a large batch of cameras to measure the impact.

Cross-reference the alarm density charts with your staffing schedule. If false alarm peaks and real alarm peaks overlap in the same hours, operators are processing noise during high-alert windows. Use this to adjust coverage or NOVA99x thresholds.

Empty State and Known Display Issue

When you first access Analytics on a new account, or view data for a site that was just activated, the screen shows zero or empty values. This is expected — data accumulates as cameras send events. After 24–48 hours of activity, meaningful data begins to appear.

The Noisy cameras breakdown has its own empty state: it needs at least 24 hours of alarm volume and enough alarms per camera (typically 50 or more) for a false-alarm rate to be statistically meaningful, so brand-new accounts or those with very few cameras see a “no breakdown data” message. The fastest way to get useful data is to enable NOVA99x, whose classifications populate the breakdown immediately rather than waiting for operator closure tags to accumulate.

A known display issue may show undefined labels in the Alarm Volume Overview panel when the page first loads. This is a transient display glitch. If the labels do not resolve after a few seconds, refresh the page.
